40CT AMMUNITION
A SMART SOLUTION FOR EVERY SCENARIO
APFSDS-T
KE-AB
GPR AB-T
GPR-PD-T
GPR-KE-T
TP-T
TPRR-T

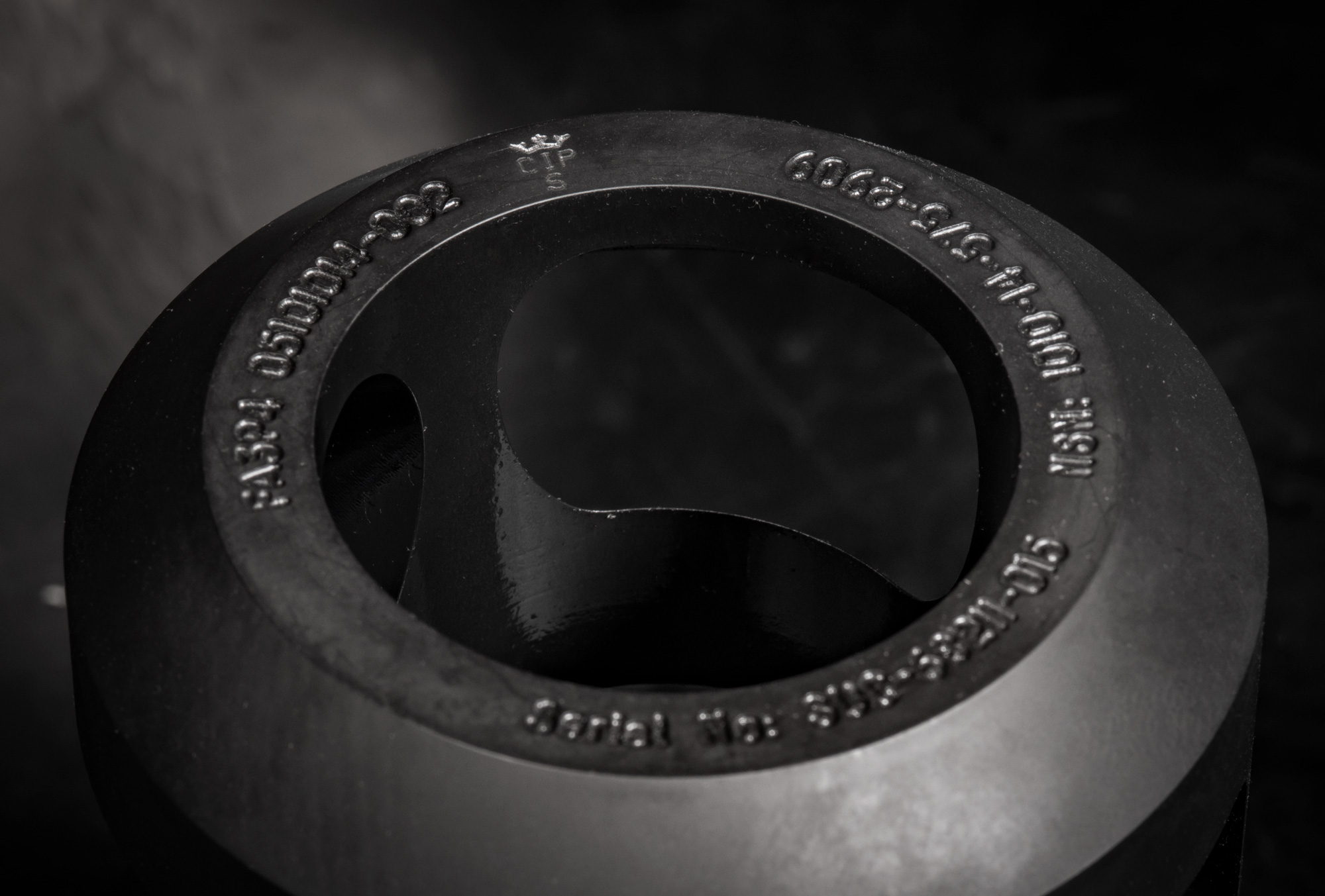

The main unique feature of the 40 CT ammunition is its Cased Telescoped design, in which the projectile is integrated into the cartridge case. This innovative design enables 40 CT ammunition to be significantly more compact than conventional ammunition, whilst delivering a step-change in lethality.
APFSDS-T
KE-AB
GPR-AB-T
GPR-PD-T
GPR-KE-T
TP-T
TPRR-T
APFSDS-T
APFSDS-T : Armour Piercing Fin Stabilised Discarding Sabot-Tracer
Greater penetration at increased range
The tungsten projectile of the APFSDS-T can penetrate more than 140 mm of RHA (Rolled Homogenous Armour) at 1,500 m, defeating both light to heavily protected vehicles with advanced add-on armour.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 1900 g |
| PROJECTILE MASS | 550 g |
| MUZZLE VELOCITY | > 1500 m/s |
| DISPERSION | < 0.3 mrad |
| PERFORATION | 140 mm RHA at 1500 m |
| EFFECTIVE RANGE | > 2500 m |
KE-AB
KE-AB : Kinetic Energy Airburst
Ground Based Air Defence to defeat modern threats
Leveraging proven Airburst technology, the KE-AB munition delivers a payload of tungsten pellets with a directional terminal effect. It is particularly effective against Unmanned Aerial Vehicles (UAV), swarming drones, missiles, helicopters and low-speed aircraft.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 3000 g |
| PROJECTILE MASS | 1400 g |
| MUZZLE VELOCITY | 900 m/s |
| DISPERSION | < 0.5 mrad |
| EFFECTIVE RANGE | 3500 m |
GPR-AB-T
GPR-AB-T : General Purpose Round – Airburst – Tracer
Defeat behind-cover or dug-in targets
Delivers an air-bursting detonation above the target at a range of 60 to 2,500 m. This programmable high-explosive ammunition is optimised for fragmentation effects, providing coverage of up to 125 m² on the ground or behind obstacles, and it enables the neutralisation of vehicle optical systems.
The GPR-AB-T can also operate in Point Detonating mode.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 2400 g |
| PROJECTILE MASS | 980g |
| MUZZLE VELOCITY | 1000 m/s |
| DISPERSION | < 0.5 mrad |
| PERFORATION |
> 210 mm concrete at 1000 m > 15 mm RHA at 1000 m |
| EFFECTIVE RANGE | 2500 m |
GPR-PD-T
GPR-PD-T : General Purpose Round – Point Detonating – Tracer
Highly effective against reinforced structures, dismounted troops and light armoured vehicles.
Breaches more than 210 mm of double-reinforced concrete. The fuze is optimised to maximise “behind protection” fragmentation effect.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 2400 g |
| PROJECTILE MASS | 980g |
| MUZZLE VELOCITY | 1000 m/s |
| DISPERSION | < 0.5 mrad |
| PERFORATION |
> 210 mm concrete at 1000 m > 15 mm RHA at 1000 m |
| EFFECTIVE RANGE | 2500 m |
GPR-KE-T
GPR-KE-T: General Purpose Round – Kinetic Energy – Tracer
Cost effective solution to engage improvised structures, bunkers and other low-value targets.
This full calibre kinetic energy round is the inert version of the GPR-PD.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 2400 g |
| PROJECTILE MASS | 980g |
| MUZZLE VELOCITY | 1000 m/s |
| DISPERSION | < 0.5 mrad |
| EFFECTIVE RANGE | 2500 m |
TP-T
TP-T : Target Practice – Tracer
Standard training round
This inert training munition reproduces the ballistic trajectory of GPR-PD-T, GPR-KE-T and GPR-AB-T ammunition enabling training under realistic conditions.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 2400 g |
| PROJECTILE MASS | 980g |
| MUZZLE VELOCITY | 1000 m/s |
| DISPERSION | < 0.5 mrad |
| MAXIMUM RANGE | 7000 m |
TPRR-T
TPRR-T: Target Practice Reduced Range – Tracer
Cost-effective reduced range training round.
The TPRR-T munition offers an ideal cost-effective training solution with a reduced safety trace.
| CHARACTERISTICS | |
|---|---|
| DIMENSIONS | 65 x 255 mm |
| AMMUNITION MAS | 1900 g |
| PROJECTILE MASS | 730 g |
| MUZZLE VELOCITY | 1000 m/s |
| DISPERSION | < 0.5 mrad |
| MAXIMUM RANGE | < 3500 m |
